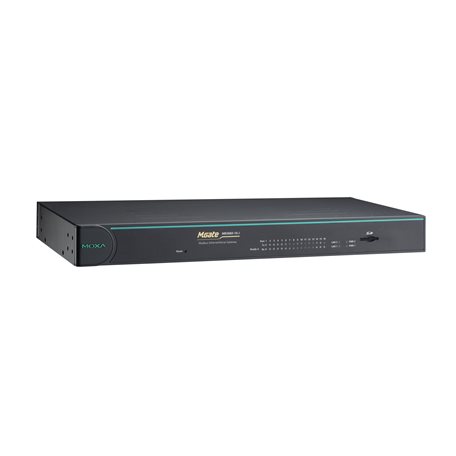

The MGate MB3660 (MB3660-8 and MB3660-16) gateways are redundant Modbus gateways that convert between the Modbus TCP and Modbus
RTU/ASCII protocols. They can be accessed by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices. Routing through
the serial ports can be controlled by IP address, TCP port number, or ID mapping. Serial-port routing by designated TCP port and IP address
allows access for up to 4 TCP clients/masters, while routing by ID mapping (slave ID table) allows access for up to 256 TCP clients/masters. The
MGate MB3660 isolation model provides 2-kV isolation protection suitable for power substation applications. The MGate MB3660 gateways are
designed to easily integrate Modbus TCP and RTU/ASCII networks. The MGate MB3660 gateways offer features that make network integration
easy, customizable, and compatible with almost any Modbus network.

For large-scale Modbus deployments, MGate MB3660 gateways can effectively connect a large number of Modbus nodes to the same network.
The MB3660 Series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus
standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus
ASCII operation and for different baudrates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.

The MGate MB3660 gateways support two communication modes: transparent mode and agent mode. For transparent mode, the gateway
converts Modbus commands from Modbus TCP to Modbus RTU/ASCII, and vice versa, or from serial (master) to serial (slave). However, since only
one Modbus protocol request-response action can be executed at any given time, each Modbus device has to wait its turn, resulting in poorer
performance.

In order to provide better performance, the MGate MB3660 gateways are designed with an innovative Command Learning function, which can be
activated with a single mouse click. Once activated, the gateway will learn and remember the Modbus commands it receives, and once a command
has been learned, the gateway will act as though it were in agent mode, and actively send Modbus requests to the relevant Modbus devices. Since
the data is saved in a different memory space that can be accessed by the SCADA system, the SCADA system can retrieve Modbus response data
directly from the gateway’s memory, instead of waiting for the data to pass through the Modbus devices, dramatically increasing communication
performance.

Moxa’s Auto-Device Routing function helps eliminate many of the problems and inconveniences encountered by engineers who need to configure
large numbers of Modbus devices. A single mouse click is all that’s required to set up a slave ID routing table and configure Modbus gateways to
automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system. By removing the need to manually create
the slave ID routing table, the Auto-Device Routing function saves engineers significant time and reduces cost.

For a complicated Modbus system, redundancy is extremely important. The MGate MB3660 Modbus gateways support redundancy for both the
power input and Ethernet connection. The MGate MB3660 gateways come with dual AC or DC power inputs built in for power redundancy, and
have dual Ethernet ports (with different IPs) for network redundancy. To accommodate different types of applications, the dual Ethernet ports can
be configured in one of two ways:

• Use the same IP for both Ethernet ports. In this case, the MGate MB3660 gateway will automatically switch to the backup LAN when the main LAN fails.
• Use different IP addresses for each of the two Ethernet ports. In this case, Modbus clients/masters can use both Ethernet ports to communicate with Modbus RTU/ASCII slave devices at the same time.

• Supports Auto Device Routing for easy configuration
• Supports route by TCP port or IP address for flexible deployment
• Innovative Command Learning for improving system performance
• Supports agent mode for high performance through active and parallel polling of serial devices
• Supports Modbus serial master to Modbus serial slave communications
• 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
• SD card for configuration backup/duplication and event logs
• Accessed by up to 256 Modbus TCP clients
• Connects up to 128 Modbus TCP servers
• RJ45 serial interface (for “-J” models)
• Serial port with 2 kV isolation protection (for “-I” models)
• Dual VDC or VAC power inputs with wide power input range
• Embedded traffic monitoring/diagnostic information for easy troubleshooting
• Status monitoring and fault protection for easy maintenance
