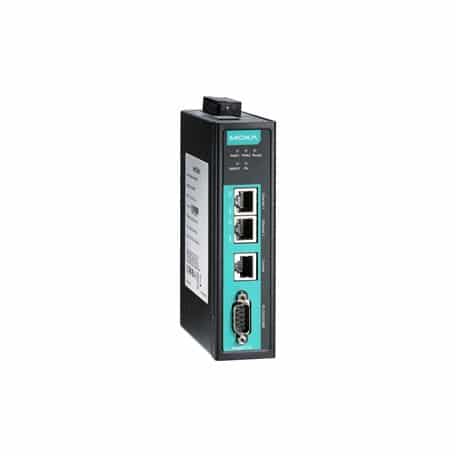

The MGate 5103 is an industrial Ethernet gateway for Modbus RTU/nASCII/TCP, EtherNet/IP, and PROFINET network communications. Tonintegrate existing Modbus devices onto a PROFINET network, usenthe MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latestnexchange data will be stored in the gateway as well. The gatewaynconverts stored Modbus or EtherNet/IP data into PROFINET packets sonthe PROFINET IO controller can control or monitor field devices.n nEasy Configuration via Web ConsolenThe MGate 5103 series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5103 series also supports a GSDML export function. GSDML files can be imported into PROFINET PLCs to save time on PLC configuration.nModbus RTU/ASCII/TCP Protocol Traffic MonitornMGate 5103 series gateways support Modbus RTU/ASCII/TCP Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave IDs and register addresses, or incorrect command configuration. With Modbus RTU/ASCII/TCP Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.nMaintenance FunctionsnMGate 5103 series gateways provide a web console and Telnet console for remote maintenance. Encryption communication functions, including HTTPS and SSH, are supported to provide better network security. In addition, firmware log functions are provided to record connection events and Modbus maintenance events. Users can review log data remotely through the web console.
- Supports PROFINET IO devices
- Supports Modbus RTU/ASCII/TCP master/slave configurations
- Effortless configuration via web-based wizard
- Supports EtherNet/IP Adapter
- Complete diagnosis information for maintenance
- Embedded Modbus traffic monitoring
- microSD card for configuration backup and event logs
- -40 to 75°C wide operating temperature models available
- Modbus port with 2 kV built-in isolation protection
- Built-in Ethernet cascading for easy wiring
- Security based on IEC-62443
