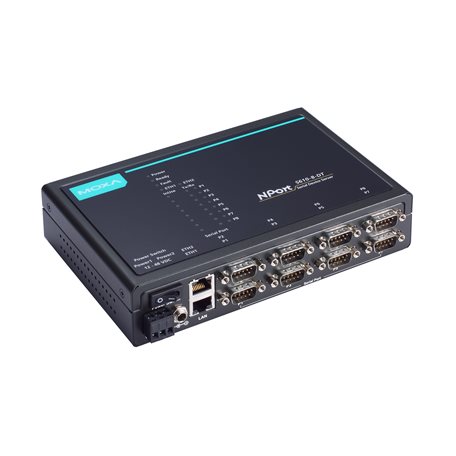

NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your
existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts
over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for
applications that need additional serial ports, but for which mounting rails are not available.

Convenient Design for RS-485 Applications

The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some
critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also
important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally
compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor
values manually for each serial port.

Convenient Power Inputs

The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect
the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.

LED Indicators to Ease Your Maintenance Tasks

The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help
engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers
monitor the status of attached serial devices.

Two Ethernet Ports for Convenient Cascade Wiring

The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or
server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet
switch, reducing wiring costs.

• 8 serial ports supporting RS-232/422/485
• Compact desktop design
• 10/100M auto-sensing Ethernet
• Easy IP address configuration with LCD panel
• Configure by Telnet, web browser, or Windows utility
• Socket modes: TCP server, TCP client, UDP, Real COM
• SNMP MIB-II for network management
