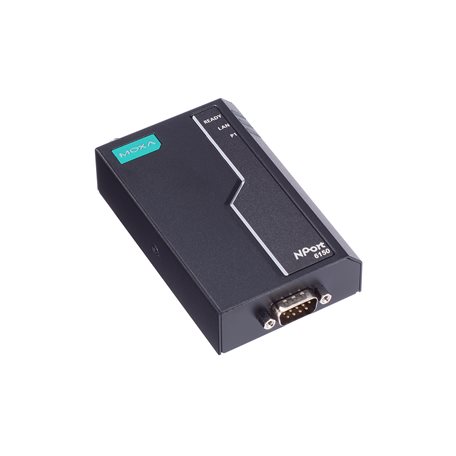

Moxa has leveraged IEC 62443-4-1 secure development lifecycle process to develop a new generation of secure terminal servers. The NPort 6100-
G2/6200-G2 Series secure terminal servers follow the IEC 62443-4-2 design and guidelines to securely connect your legacy serial devices to
industrial networks. In addition, the user experience is enhanced based on Moxa’s 35 years of experience in the serial-connectivity field by
providing versatile installation means for different space requirements and an easy troubleshooting tool for maintenance.

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer
this concern, the NPort® 6100-G2/6200-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before
sending it over the network. With the NPort® 6100-G2/6200-G2, you can be rest assured that serial data is transmitted securely over both private
and public networks.

In line with the trend for smaller systems and easier setup, the NPort® 6100-G2/6200-G2 secure terminal servers support side-mount installation
and two-sided LEDs to fit in a variety of installation scenarios with the added benefit of reduction in the system size. The software-configurable pull
high/low resistors and terminator function eliminate the requirement to open the chassis to adjust the pull high/low resistors or terminators, making
it convenient for operators to install the devices at field sites.

At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because
they need to collect information and then hold discussions with the technical support team. The NPort 6100-G2/6200-G2 comes with a one-click
log collection function to enable logging of data, which can provide all the data that a technical support team needs to quickly troubleshoot system
issues.

• Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
• Supports SSL certificate signing by RSA-4096 / ECC-521
• Secure Boot only allows Moxa-authorized firmware to run on devices
• Side-mount installation option and two-sided LEDs to meet all installation scenarios and enable system downsizing
• Easy RS-485 configuration of serial interfaces with software-adjustable pull high/low resistor and terminator
